cMessagingEndpoint

cMessagingEndpoint properties

Component Family	Messaging
Function	cMessagingEndpoint allows two applications to communicate by either sending or receiving messages, one endpoint can not do both.
Purpose	cMessagingEndpoint sends or receives messages.
Basic settings	URI	URI of the messages to send or receive. It can be of different format: -File: “file:/”, -Database: “jdbc:/”, -Protocols: “ftp:/”, “http:/” -etc. You can add parameters to the URI using the generic URI syntax, for example: `"file:/directoryName?option=value&option=value"` For more information on the different components that can be used in cMessagingEndpoint, see Apache Camel’s Website: http://camel.apache.org/components.html.
Advanced settings	Dependencies	By default, the camel core supports the following components: bean, browse, class, dataset, direct, file, language, log, mock, properties, ref, seda, timer, vm. To use other components, you have to provide the dependencies corresponding to those components in the cMessagingEndpoint component. To do so: Click the plus button to add new lines in the Camel component list. In the line added, select the component you want to use in cMessagingEndpoint. For more information about the commonly used Camel components, see Commonly used Camel components.
	Use a custom component	If you want to use a custom component, select this check box and click the three-dot button to upload a jar file with your own component. Note All the transitive dependencies of this custom component should be included in the jar file.
Usage	This component can be used as sending and/or receiving message endpoint according to its position in the Route.
Limitation	n/a

Commonly used Camel components

The following table lists the most commonly used Camel components that can be called by
cMessagingEndpoint. Click the links in the table to
go to the Apache Camel’s Website for the latest information of the these components.
Make sure to use the information applicable for the Camel Version included in Talend ESB. See also Talend ESB
Mediation Developer Guide for details of the Camel components.

Component / ArtifactId / URI	Description
ActiveMQ / activemq-camel `activemq:[topic:]destinationName`	For JMS Messaging with Apache ActiveMQ
AHC / camel-ahc `ahc:http[s]://hostName[:port][/resourceUri][?options]`	To call external HTTP services using Async Http Client.
APNS / camel-apns `apns:<notify\|consumer>[?options]`	For sending notifications to Apple iOS devices.
Avro / camel-avro `avro:[transport]:[host]:[port][/messageName][?options]`	Working with Apache Avro for data serialization.
Atom / camel-atom `atom:uri`	Working with Apache Abdera for atom integration, such as consuming an atom feed.
Bean / camel-core `bean:beanName[?method=someMethod]`	Uses the Camel Bean Binding to bind message exchanges to beans in the Camel Registry. Is also used for exposing and invoking POJO (Plain Old Java Objects).
Cache / camel-cache `cache://cachename[?options]`	The cache component facilitates creation of caching endpoints and processors using EHCache as the cache implementation.
Class / camel-core `class:className[?method=someMethod]`	Uses the Camel Bean Binding to bind message exchanges to beans in the Camel Registry. Is also used for exposing and invoking POJOs (Plain Old Java Objects).
CMIS / camel-cmis `cmis://cmisServerUrl[?options]`	Uses the Apache Chemistry client API to interface with CMIS supporting CMS.
Context / camel-context `context:camelContextI localEndpointName`	Used to refer to endpoints within a separate CamelContext to provide a simple black box composition approach so that routes can be combined into a CamelContext and then used as a black box component inside other routes in other CamelContexts
CouchDB / camel-couchdb `couchdb:hostName[:port]/database[?options]`	To integrate with Apache CouchDB.
Crypto (Digital Signatures) / camel-crypto `crypto:sign:name[?options], crypto:verify:name[?options]`	Used to sign and verify exchanges using the Signature Service of the Java Cryptographic Extension.
CXF / camel-cxf `cxf:address[?serviceClass=...]`	Working with Apache CXF for web services integration
CXF Bean / camel-cxf `cxf:bean name`	Process the exchange using a JAX WS or JAX RS annotated bean from the registry. Requires less configuration than the above CXF Component
CXFRS / camel-cxf `cxfrs:address[?resourcesClasses=...]`	Working with Apache CXF for REST services integration
Direct / camel-core `direct:name`	Synchronous call to another endpoint from same CamelContext
Disruptor / camel-disruptor `disruptor-vm:someName[?<option>]`	To provide the implementation of SEDA which is based on disruptor.
ElasticSearch / camel-elasticsearch `elasticsearch://clusterName[?options]`	Uses the Bean Binding to bind message exchanges to EJBs. It works like the Bean component but just for accessing EJBs. Supports EJB 3.0 onwards.
Spring Event / camel-spring `event://default, spring-event://default`	Working with Spring ApplicationEvents
Exec / camel-exec `exec://executable[?options]`	For executing system commands
Facebook / camel-facebook `facebook://endpoint[?options]`	Providing access to all of the Facebook APIs accessible using Facebook4J
File / camel-core `file://nameOfFileOrDirectory`	Sending messages to a file or polling a file or directory.
Flatpack / camel-flatpack `flatpack:[fixed\|delim]:configFile`	Processing fixed width or delimited files or messages using the FlatPack library
FOP / camel-fop `fop:outputFormat[?options]`	Renders the message into different output formats using Apache FOP.
FreeMarker / camel-freemarker `freemarker:someTemplateResource`	Generates a response using a Freemarker template
FTP / camel-ftp `ftp:contextPath[?options]`	Sending and receiving files over FTP.
FTPS / camel-ftp `ftps://[username@]hostName[:port]/directoryName[?options]`	Sending and receiving files over FTP Secure (TLS and SSL).
Geocoder / camel-geocoder `geocoder:address\|latlng:latitude,longitude>[?options]`	Supports looking up geocoders for an address, or reverse lookup geocoders from an address.
Google Guava EventBus / camel-guava-eventbus `guava-eventbus:busName[?options]`	The Google Guava EventBus allows publish-subscribe-style communication between components without requiring the components to explicitly register with one another (and thus be aware of each other). This component provides integration bridge between Camel and Google Guava EventBus infrastructure.
HBase / camel-hbase `hbase://table[?options]`	For reading/writing from/to an HBase store (Hadoop database).
HDFS / camel-hdfs `hdfs://hostName[:port][/path][?options]`	For reading/writing from/to an HDFS file system using Hadoop 1.x.
HDFS2 / camel-hdfs2 `hdfs2://hostName[:port][/path][?options]`	For reading/writing from/to an HDFS file system using Hadoop 2.x.
HL7 / camel-hl7 `mina2:tcp://hostname[:port]`	For working with the HL7 MLLP protocol and the HL7 model using the HAPI library.
HTTP4 / camel-http4 `http4://hostname[:port]`	For calling out to external HTTP servers using Apache HTTP Client 4.x
IMAP / camel-mail `imap://hostname[:port]`	Receiving email using IMap
Infinispan / camel-infinispan `infinispan://hostName[?options]`	For reading/writing from/to Infinispan distributed key/value store and data grid
Jasypt / camel-jasypt `jasypt: uri`	Simplified on-the-fly encryption library, integrated with Camel.
JCR / camel-jcr `jcr://user:password@repository/path/to/node`	Storing a message in a JCR (JSR-170) compliant repository like Apache Jackrabbit
JDBC / camel-jdbc `jdbc:dataSourceName?options`	For performing JDBC queries and operations
Jetty / camel-jetty `jetty:url`	For exposing services over HTTP
JGroups / camel-jgroups `jgroups:clusterName[?options]`	The `jgroups:` component provides exchange of messages between Camel infrastructure and JGroups clusters.
JMS / camel-jms `jms:[topic:]destinationName`	Working with JMS providers
JMX / camel-jmx `jmx://platform?options`	For working with JMX notification listeners
JPA / camel-jpa `jpa://entityName`	For using a database as a queue via the JPA specification for working with OpenJPA, Hibernate or TopLink
Jsch / camel-jsch `scp://localhost/destination`	Support for the scp protocol.
Kafka / camel-kafka `kafka://server:port[?options]`	For producing to or consuming from Apache Kafka message brokers.
Krati / camel-krati `krati://[path to datastore/][?options]`	For producing to or consuming to Krati datastores.
Log / camel-core `log:loggingCategory[?level=ERROR]`	Uses Jakarta Commons Logging to log the message exchange to some underlying logging system like log4j
Lucene / camel-lucene `lucene:searcherName:insert [?analyzer=<analyzer>]`	Uses Apache Lucene to perform Java-based indexing and full text based searches using advanced analysis/tokenization capabilities
MINA2 / camel-mina2 `mina2:[tcp\|udp\|vm]:host[:port][?options]`	Working with Apache MINA 2.x.
Mock / camel-core `mock:name`	For testing routes and mediation rules using mocks
MongoDB / camel-mongodb `mongodb:connectionBean[?options]`	Interacts with MongoDB databases and collections. Offers producer endpoints to perform CRUD-style operations and more against databases and collections, as well as consumer endpoints to listen on collections and dispatch objects to Camel routes.
MQTT / camel-mqtt `mqtt:name[?options]`	Component for communicating with MQTT M2M message brokers
Mustache / camel-mustache `mustache:templateName[?options]`	Generates a response using a Mustache template.
MyBatis / camel-mybatis `mybatis://statementName`	Performs a query, poll, insert, update or delete in a relational database using MyBatis.
Netty / camel-netty-http `netty-http:http:[port]/context-path[?options]`	Works as Netty HTTP server and client using the Netty project.
OptaPlanner / camel-optaplanner `optaplanner:solverConfig[?options]`	Solves the planning problem contained in a message with OptaPlanner.
POP3 / camel-mail `pop3://user-info@host:port`	Receiving email using POP3 and JavaMail.
Properties / camel-core `properties://key[?options]`	The properties component facilitates using property placeholders directly in endpoint uri definitions.
Quartz / camel-quartz `quartz://groupName/timerName`	Provides a scheduled delivery of messages using the Quartz scheduler
Quartz2 / camel-quartz2 `quartz2://groupName/timerName[?options]`	Provides a scheduled delivery of messages using the Quartz 2.x scheduler.
RabbitMQ / camel-rabbitmq `rabbitmq://hostname[:port]/exchangeName[?options]`	Component for integrating with RabbitMQ.
Ref / camel-core `ref:name`	Component for lookup of existing endpoints bound in the Camel Registry.
RMI / camel-rmi `rmi://host[:port]`	Working with RMI
RSS / camel-rss `rss:uri`	Working with ROME for RSS integration, such as consuming an RSS feed.
Salesforce / camel-salesforce `salesforce:topic[?options]`	To integrate with Salesforce.
SAP NetWeaver / camel-sap-netweaver `sap-netweaver:hostName[:port][?options]`	To integrate with SAP NetWeaver Gateway.
SEDA / camel-core `seda:name`	Asynchronous call to another endpoint in the same Camel Context
SERVLET / camel-servlet `servlet:uri`	For exposing services over HTTP through the servlet which is deployed into the Web container.
SJMS / camel-sjms `sjms:[queue:\|topic:]destinationName[?options]`	A ground up implementation of a JMS client.
SFTP / camel-ftp `sftp://host[:port]/fileName`	Sending and receiving files over SFTP (FTP over SSH).
SMTP / camel-mail `smtp://user-info@host[:port]`	Sending email using SMTP and JavaMail
SMPP / camel-smpp `smpp://user-info@host[:port]?options`	To send and receive SMS using Short Messaging Service Center using the JSMPP library
SNMP / camel-snmp `snmp://host[:port]?options`	Polling OID values and receiving traps using SNMP via SNMP4J library
Solr / camel-solr `solr://hostName[:port]/solr[?options]`	Uses the Solrj client API to interface with an Apache Lucene Solr server.
Splunk / camel-splunk `splunk://[endpoint]?[options]`	For working with Splunk
SpringBatch / camel-spring-batch `spring-batch:jobName[?options]`	To bridge Camel and Spring Batch.
SpringIntegration / camel-spring-integration `spring-integration: defaultChannelName`	The bridge component of Camel and Spring Integration
Spring LDAP / camel-spring-ldap `spring-ldap:springLdapTemplateBean[?options]`	Camel wrapper for Spring LDAP
Spring Redis / camel-spring-redis `spring-redis://hostName:port[?options]`	Component for consuming and producing from Redis key-value store Redis
Spring Web Services / camel-spring-ws `spring-ws:[mapping-type:]address[?options]`	Client-side support for accessing web services, and server-side support for creating your own contract-first web services using Spring Web Services
SQL / camel-sql `sql:select * from table where id=#`	Performing SQL queries using JDBC
SSH / camel-ssh `ssh:[username[:password]@]host [:port][?options]`	For sending commands to a SSH server
StAX / camel-stax `stax:(contentHandlerClassName\|#myHandler)`	Process messages through a SAX ContentHandler.
Stomp / camel-stomp `stomp:queue:destinationName[?options]`	For communicating with Stomp compliant message brokers, like Apache ActiveMQ or ActiveMQ Apollo
Stub / camel-core `stub:someOtherCamelUri`	Allows you to stub out some physical middleware endpoint for easier testing or debugging
Test / camel-spring `test:expectedMessagesEndpointUri`	Creates a Mock endpoint which expects to receive all the message bodies that could be polled from the given underlying endpoint
Timer / camel-core `timer://name`	A timer endpoint
Twitter / camel-twitter `twitter://endpoint[?options]`	A twitter endpoint
Velocity / camel-velocity `velocity:someTemplateResource`	Generates a response using an Apache Velocity template
Vertx / camel-vertx `vertx:eventBusName`	Working with the vertx event bus
VM / camel-core `vm:name`	Asynchronous call to another endpoint in the same JVM
Weather / camel-weather `weather://name[?options]`	Polls the weather information from Open Weather Map.
Websocket / camel-websocket `websocket://hostname[:port][/resourceUri][?options]`	Communicating with Websocket clients.
XQuery / camel-saxon `xquery:someXQueryResource`	Generates a response using an XQuery template
XSLT / camel-spring `xslt:someTemplateResource`	Generates a response using an XSLT template
Yammer / camel-yammer `yammer://function[?options]`	Allows you to interact with the Yammer enterprise social network.
Zookeeper / camel-zookeeper `zookeeper://zookeeperServer[:port][/path][?options]`	Working with ZooKeeper cluster(s)

Scenario 1: Moving files from one message endpoint to another

This scenatio uses two cMessagingEndpoint components
to read and move files from one endpoint to another.

Dropping and linking the components

From the Messaging folder of the
Palette, drag and drop two cMessagingEndpoint components onto the design
workspace, one as the message sender and the other as the message receiver,
and label them Sender and Receiver respectively to better identify their
roles in the Route.
Right-click the component labeled Sender, select Row >
Route in the menu and drag to the
Receiver to link them together with a
route link.

Configuring the components and connections

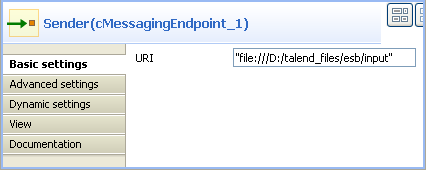

Double-click the component labeled Sender to open its Basic
settings view in the Component tab.
In the URI field, type in the URI of the
messages you want to route.

As we are handling files, type in “file:///” and the
path to the folder containing the files.

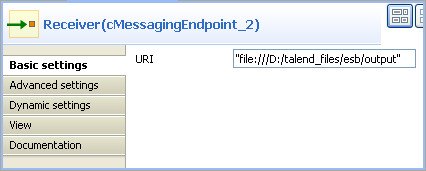

Double-click the component labeled Receiver to open its Basic
settings view in the Component tab.
In the URI field, type in the URI of the
folder where you want to route your message.

As we are handling files, type in “file:///” and the
path to the folder to which the files will be sent.
Press Ctrl+S to save your Route.

Viewing code and executing the Route

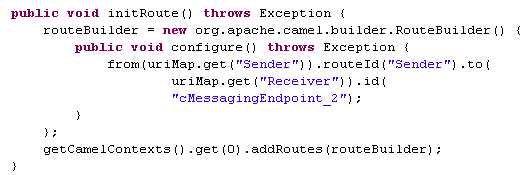

To have a look at the generated code, click the Code tab at the bottom of the design workspace.

The code shows the from and .to corresponding to
the two endpoints: from for the sending one and
.to for the receiving one.
In the Run view, click the Run button to launch the execution of your Route.

You can also press F6 to execute it.

RESULT: The files are moved from their original folder to the target one.
Furthermore, a new .camel folder is created
in the source folder containing the consumed files. This is Camel’s default
behavior. Thus, the files will not be processed endlessly but they are
backed up in case of problems.

Scenario 2: Sending files to another message endpoint

This scenario accesses FTP service and transfers files from one endpoint to
another.

Dropping and linking components

From the Messaging folder of the
Palette, drag and drop two cMessagingEndpoint components onto the design
workspace, one as the message sender and the other as the message receiver,
and label them Sender and Receiver respectively to better identify their
roles in the Route.
Right-click the component labeled Sender, select Row >
Route in the menu and drag to the
Receiver to link them together with a
route link.

Configuring the components and connections

Double-click the component labeled Sender to display its Basic
settings view in the Component tab.

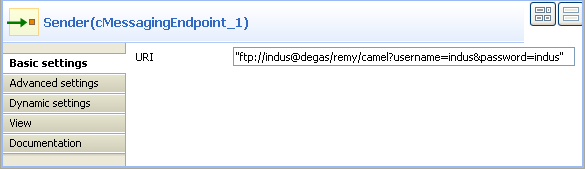

In the URI field, type in the URI of the
message you want to route.

Here, we are using an FTP component:
ftp://indus@degas/remy/camel with URI specific parameters
authenticating the FTP connection:
?username=indus&password=indus.

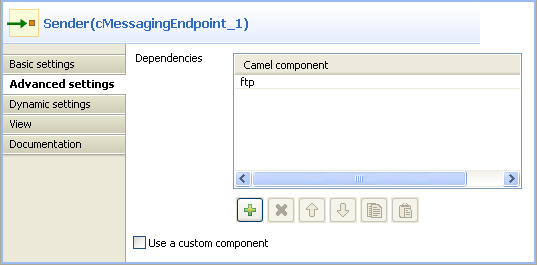

For the FTP component to work in Camel, click the Advanced settings tab of cMessagingEndpoint, click the [+] button to add a Camel component in the Dependencies table, and select
ftp from the Camel
component list to activate the FTP component.
Double-click the component labeled Receiver to open its Basic
settings view in the Component tab.
In the URI field, type in the URI of the
folder to which you want your message to be routed.

As we are handling files, type in “file:///” and the
path to the folder to which the files will be sent.
Press Ctrl+S to save your Route.

Viewing code and executing the Route

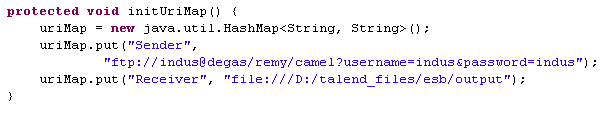

To have a look at the generated code, click the Code tab at the bottom of the design workspace.

In this part of code, we can see a route represented by from
and .to, corresponding to the sending and receiving
endpoints.
In the Run view, click the Run button to launch the execution of your Route.

You can also press F6 to execute it.

RESULT: The message is sent (copied) to the receiving endpoint.

Scenario 3: Using an Xquery endpoint to filter messages

In this scenario, we will use a cMessagingEndpoint
component to call a Route Resource as an Xquery parser to extract messages from the
local file system.

The following sample XML file is used in this scenario:

&lt;people&gt;
  &lt;person id="8"&gt;
    &lt;firstName&gt;Ellen&lt;/firstName&gt;
    &lt;lastName&gt;Ripley&lt;/lastName&gt;
    &lt;city&gt;Washington&lt;/city&gt;
  &lt;/person&gt;
  &lt;person id="9"&gt;
    &lt;firstName&gt;Peter&lt;/firstName&gt;
    &lt;lastName&gt;Green&lt;/lastName&gt;
    &lt;city&gt;London&lt;/city&gt;
  &lt;/person&gt;
&lt;/people&gt;

<firstName>Ellen</firstName>

<lastName>Ripley</lastName>

<city>Washington</city>

</person>

<firstName>Peter</firstName>

<lastName>Green</lastName>

<city>London</city>

</person>

</people>

Creating a Route Resource

From the repository tree view, right-click the Resources node and select Create
Resource from the context menu.

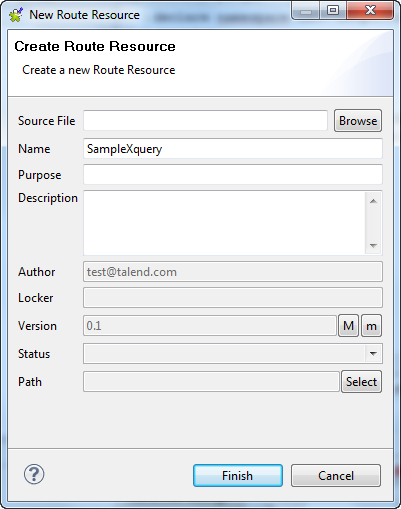

The [New Route Resource] wizard opens. In the Name field, type in a name for the Resource, for
example, SampleXquery. Click Finish to close the wizard.

Enter the following code in the editor to extract the
firstName and lastName of all
the person elements.

declare namespace ns0="http://com.sap/b";
&lt;people&gt;
{
for $p in /people//person
return
            &lt;person&gt;
            &lt;firstName&gt;{$p/firstName/text()}&lt;/firstName&gt;
            &lt;lastName&gt;{$p/lastName/text()}&lt;/lastName&gt;
            &lt;/person&gt;
}
&lt;/people&gt;

declare namespace ns0="http://com.sap/b";

{

for $p in /people//person

return

<firstName>{$p/firstName/text()}</firstName>

<lastName>{$p/lastName/text()}</lastName>

</person>

}

</people>

Press Ctrl+S to save your Route
Resource.

Dropping and linking the components

From the Messaging folder of the
Palette, drag and drop a cFile and a cMessagingEndpoint component onto the design
workspace.
From the Processor folder, drag and drop
a cProcessor component onto the design
workspace.

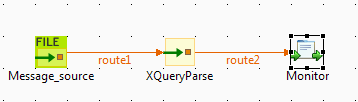

Link the components with the Row >
Route connection as shown above.
Label the components for better identification of their
functionality.

Configuring the components and connections

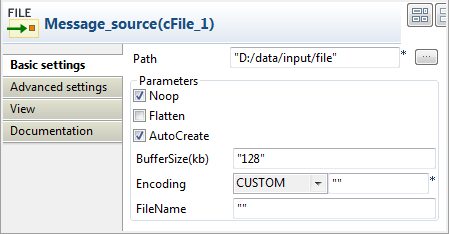

Double-click the cFile component to open
its Basic settings view in the Component tab.
In the Path field, specify the path where
the source file people.xml is located.

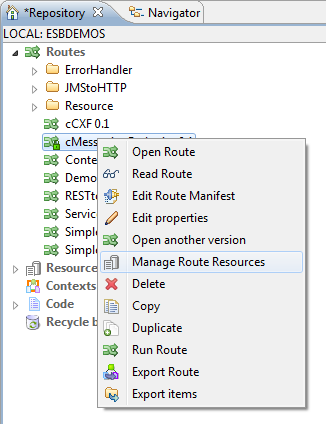

Right-click the Route from the repository tree view and select Manage Route Resources from the context
menu.

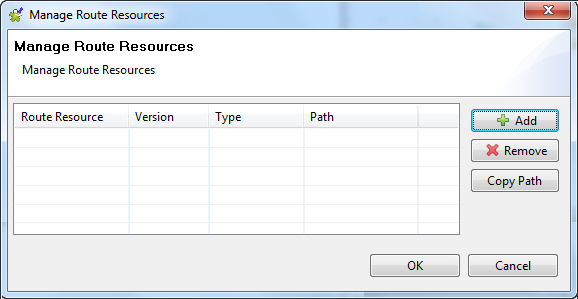

The [Manage Route Resources] wizard is opened.

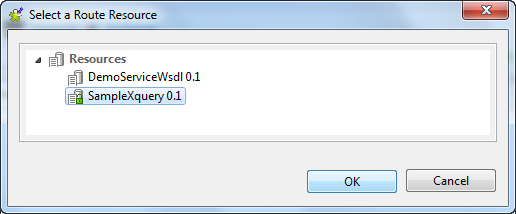

In the [Manage Route Resources] wizard, click Add and select SampleXquery from the Resources tree view in the dialog.
Click OK.

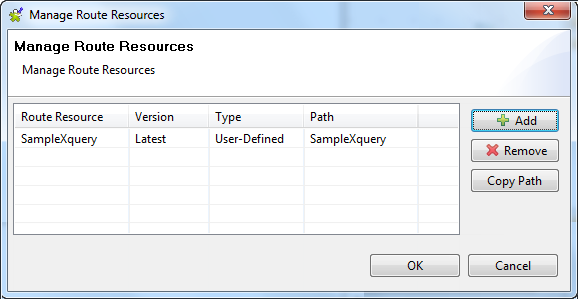

The SampleXquery Route Resource is added in the table
of the [Manage Route Resources]
wizard.
Select the SampleXquery from the Route
Resources list and click Copy Path. Click
OK to close the wizard.

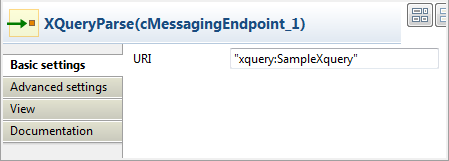

Double click the cMessagingEndpoint
component to display its Basic settings
view in the Component tab.
In the URI field, enter xquery: and paste the path of the Route
Resource SampleXquery that we just copied
in double quotation marks.

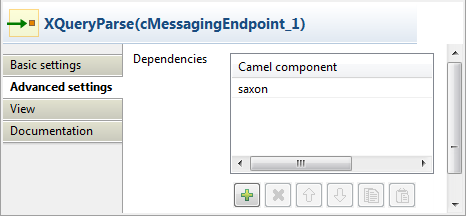

Click the Advanced settings tab, add the
Camel component saxon in the Dependencies list. For more information about
Xquery, see Apache Camel’s Website:
http://camel.apache.org/xquery-endpoint.html.

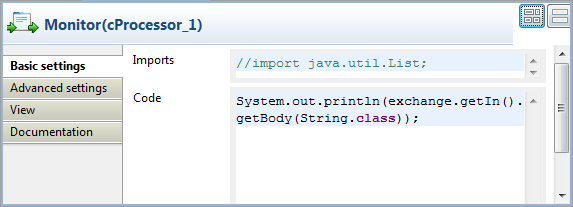

Double-click the cProcessor component to
open its Basic settings view in the
Component tab.
In the Code area, enter the following
code to display the messages intercepted on the console:

System.out.println(exchange.getIn().getBody(String.class));

1

System.out.println(exchange.getIn().getBody(String.class));
Press Ctrl+S to save your Route.

Viewing code and executing the Route

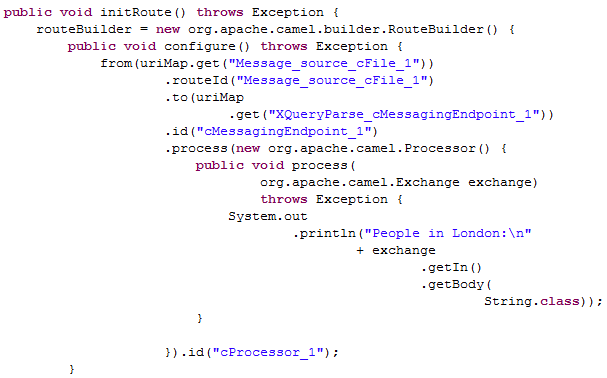

To have a look at the generated code, click the Code tab at the bottom of the design workspace.

As shown in the code above, the message is routed from
Message_source_cFile_1
.to
cMessagingEndpoint_1 and then processed by
cProcessor_1.

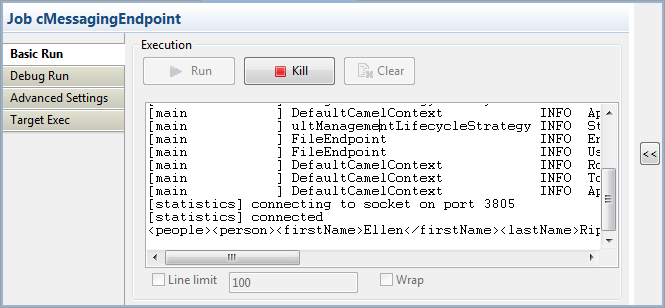

In the Run view, click the Run button to launch the execution of your Route.
You can also press F6 to execute it.

RESULT: The firstName and
lastName of all the person
elements of the source file is printed in the console.

Document get from Talend https://help.talend.com

Thank you for watching.

Docs 5.x

0 Comments

Inline Feedbacks

View all comments

cMessagingEndpoint – Docs for ESB 5.x
