Loading the traffic data

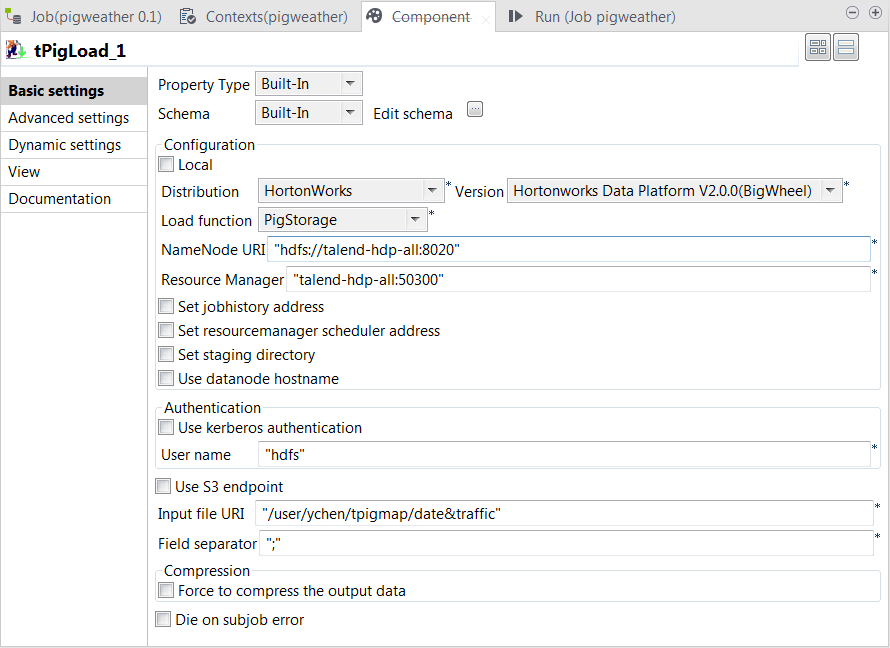

  1. Double-click the tPigLoad labeled
    traffic to open its Component view.

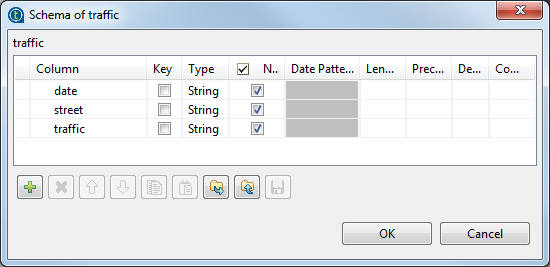

  2. Click the


    button next to Edit
    schema     to open the schema editor.

  3. Click the


    button three times to add three rows and in the
    Column column, rename them as date, street
    and traffic, respectively.


  4. Click OK to validate these
    changes.
  5. In the Mode area, select the Map/Reduce option, as we need the Studio to
    connect to a remote Hadoop distribution.
  6. In the Distribution list and the
    Version field, select the Hadoop
    distribution to be used. In this example, it is Hortonworks Data Platform V1.0.0.
  7. In the Load function list, select the
    PigStorage function to read the source
    data, as the data is a structured file in human-readable UTF-8
    format.
  8. In the NameNode URI and the
    Resource Manager fields, enter the
    locations of the master node and the Resource Manager of the Hadoop distribution to
    be used, respectively. If you are using WebHDFS, the location should be
    webhdfs://masternode:portnumber; if this WebHDFS is secured
    with SSL, the scheme should be swebhdfs and you need to use
    a tLibraryLoad in the Job to load the library required by
    the secured WebHDFS.
  9. In the Input file URI field, enter the
    directory where the data about the traffic situation is stored. As explained
    earlier, the directory in this example is /user/ychen/tpigmap/date&traffic.
  10. In the Field separator field, enter
    ; depending on the separator used by
    the source data.
