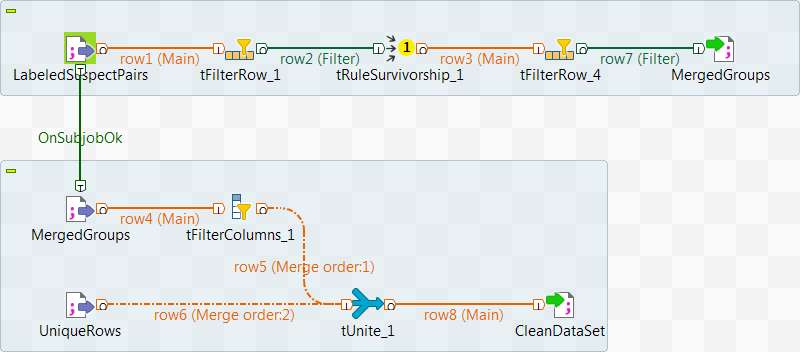

Setting up the Job

  1. Set up the first subjob:

    1. Drop the following components from the Palette onto the design
      workspace: tFileInputDelimited, two
      tFilterRow components and
      tFileOutputDelimited.

      Use the Main link to connect the
      components.

    2. Connect tFileInputDelimited to the first
      tFilterRow component.
    3. Connect the first tFilterRow component to
      tRuleSurvivorship.
    4. Connect tRuleSurvivorship to the second
      tFilterRow component.
    5. Connect the second tFilterRow component to
      tFileOutputDelimited.
  2. Set up the second subjob:

    1. Drop the following components from the Palette onto the design
      workspace: two tFileInputDelimited components,
      tFilterColumns, tUnite
      and tFileOutputDelimited.

      Use the Main link to connect the
      components.

    2. Connect the first tFileInputDelimited component
      to tFilterColumn.
    3. Connect tFilterColumn to
      tUnite.
    4. Connect the second tFileInputDelimited component
      to tUnite.
    5. Connect tUnite to
      tFileOutputDelimited.
  3. Connect the tFileInputDelimited from the first subjob to
    the tFileInputDelimited from the second subjob using a Trigger > OnSubjobOk link.
