tFTPRename

Renames files on an FTP server.

tFTPRename Standard properties

These properties are used to configure tFTPRename running in the Standard Job framework.

The Standard
tFTPRename component belongs to the Internet family.

The component in this framework is generally available.

Basic settings

Property Type

Either Built-in or Repository.



Built-in: No property data stored
centrally.



Repository: Select the Repository
file where properties are stored. The following fields are
pre-filled in using fetched data.

Use an existing connection/Component List

Select this check box and in the Component
List click the relevant connection component to reuse the connection
details you already defined.

Host

FTP IP address.

Port

FTP server listening port number.

Username

Connection login to the FTP server.

Password

Connection password to the FTP server.

To enter the password, click the […] button next to the
password field, and then in the pop-up dialog box enter the password between double quotes
and click OK to save the settings.

Remote directory

Path to the remote directory.

Move to the current directory

This option appears when Use an existing
connection is enabled. Select this check box to
change the directory to the one specified in the Remote directory field. The next FTP
component that is linked to the tFTPFileList in the Job will take this directory as
the root of the remote directory when using the same
connection.

Overwrite file

List of available options for the transferred file.

SFTP Support

Select this check box to connect to the FTP server via an SFTP connection. The following
properties will be available:

Authentication method: Select the SFTP authentication
method, either Public key or Password.

  • Public key: Enter the path to the private key
    and the passphrase for the key in the Private
    key     and Key Passphrase fields
    correspondingly.

  • Password: Enter the password required.

Filename encoding: Select this check box to set the
encoding used to convert file names from Strings to bytes. It should be the same encoding
used on the SFTP server.

Note:

If the SFTP server’s version is greater than 3, the encoding should be UTF-8, or
else an error occurs.

Files

Click the [+] button to add the
lines you want to use as filters:

Filemask: enter the filename or
filemask using wildcharacters (*) or regular expressions.

New name: name to give to the FTP
file after the transfer.

Connection Mode

Select the SFTP connection mode you want to use:

Active: You determine the
connection port to use to allow data transfer.

Passive: the FTP server determines
the connection port to use to allow data transfer.

Encoding

Select an encoding type from the list, or select Custom and define it manually. This field
is compulsory for DB data handling.

Die on error

This check box is selected by default. Clear the check box to skip
the row in error and complete the process for error-free
rows.

Advanced settings

Use Socks Proxy

Select this check box if you want to use a proxy. Then, set the
Host, Port, User and
Password proxy fields.

Ignore Failure At Quit (FTP)

Select this check box to ignore library closing errors or FTP
closing errors.

tStatCatcher Statistics

Select this check box to gather the Job processing metadata at a
Job level as well as at each component level.

Global Variables

Global Variables

ERROR_MESSAGE: the error message generated by the
component when an error occurs. This is an After variable and it returns a string. This
variable functions only if the Die on error check box is
cleared, if the component has this check box.

NB_FILE: the number of files processed. This is an After
variable and it returns an integer.

CURRENT_STATUS: the execution result of the component.
This is a Flow variable and it returns a string.

A Flow variable functions during the execution of a component while an After variable
functions after the execution of the component.

To fill up a field or expression with a variable, press Ctrl +
Space to access the variable list and choose the variable to use from it.

For further information about variables, see
Talend Studio

User Guide.

Usage

Usage rule

This component is generally used as a subjob with one component,
but it can also be used as an output or end component..

Limitation

Due to license incompatibility, one or more JARs required to use this component are not
provided. You can install the missing JARs for this particular component by clicking the
Install button on the Component tab view. You can also find out and add all missing JARs easily on the
Modules tab in the
Integration
 perspective of your
studio. You can find more details about how to install external modules in Talend Help Center (https://help.talend.com).

Scenario: Renaming a file located on an FTP server

Here is an example of using Talend FTP components to rename a file located on an FTP server.

Creating a Job for renaming a file on an FTP server

Create a Job to connect to an FTP server, then rename a file on the
server, finally close the connection to the server.

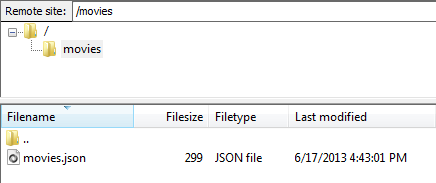

Prerequisites: To replicate this
scenario, an FTP server must be started and a file must be put onto the server. In this
example, the file movies.json has been put into the folder movies under the root directory of the FTP server.

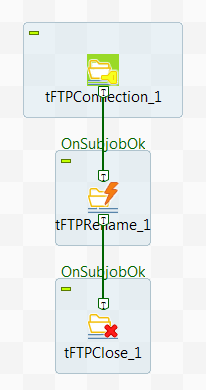

  1. Create a new Job and add a tFTPConnection component, a tFTPRename component, and a tFTPClose component by typing their names in the design workspace or
    dropping them from the Palette.
  2. Link the tFTPConnection component to
    the tFTPRename component using a Trigger > OnSubjobOk
    connection.
  3. Link the tFTPRename component to the
    tFTPClose component using a Trigger > OnSubjobOk
    connection.

Opening a connection to the FTP server

Configure the tFTPConnection
component to open a connection to the FTP server.

  1. Double-click the tFTPConnection
    component to open its Basic settings view.


  2. In the Host and Port fields, enter the FTP server IP address and the listening port
    number respectively.
  3. In the Username and Password fields, enter the authentication details.

Renaming the file on the FTP server

Configure the tFTPRename
component to rename the file on the FTP server.

  1. Double-click the tFTPRename component
    to open its Basic settings view.


  2. Specify the connection details required to access the FTP server. In
    this example, select the Use an existing connection
    check box and from the Component list drop-down
    list displayed, select the connection component to reuse its connection details you
    have already defined.
  3. In the Remote directory field, enter
    the directory on the FTP server where the file to be renamed exists. In this
    example, it is /movies.
  4. Clear the Move to the current
    directory     check box.
  5. In the Files table, click the
    [+] button to add a line, and then enter the
    existing file name in the Filemask column field and
    the new file name in the New name column field. In
    this example, they are movies.json and action_movies.json respectively.

Closing the connection to the FTP server

Configure the tFTPClose
component to close the connection to the FTP server.

  1. Double-click the tFTPClose component
    to open its Basic settings view.


  2. From the Component list drop-down
    list, select the tFTPConnection component that
    opens the connection you need to close. In this example, only one tFTPConnection component is used and it is selected by
    default.

Executing the Job to rename the file on the FTP server

After setting up the Job and configuring the components used in
the Job for renaming the file on the FTP server, you can then execute the Job and verify
the Job execution result.

  1. Press Ctrl + S to save the Job and
    then F6 to execute the Job.
  2. Connect to the FTP server to verify the result.

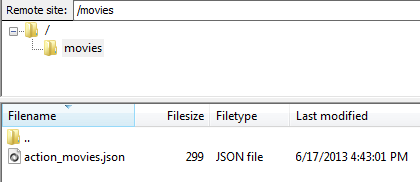

    As shown above, the file on the FTP server has been renamed from movies.json to action_movies.json.
