tRunJob

Manages complex Job systems which need to execute one Job after
another.

tRunJob executes the Job called in
the component’s properties, in the frame of the context defined.

Depending on the Talend solution you
are using, this component can be used in one, some or all of the following Job
frameworks:

Standard: see tRunJob Standard properties.

The component in this framework is generally available.
MapReduce: see tRunJob MapReduce properties.

The component in this framework is available only if you have subscribed to one
of the
Talend
solutions with Big Data.
Spark Batch: see tRunJob properties for Apache Spark Batch.

The component in this framework is available only if you have subscribed to one
of the
Talend
solutions with Big Data.

tRunJob Standard properties

These properties are used to configure tRunJob running in the Standard Job framework.

The Standard
tRunJob component belongs to the System and the Orchestration families.

The component in this framework is generally available.

Basic settings

Warning:

The tRunJob component is supported with limitations, which means
that only S4 (Minor) support cases are accepted and no patches are provided. If you
use tRunJob within Data Services and Routes (with
cTalendJob), support is provided on a “best effort” basis only.
In most cases, there are class loading issues which can sometimes be resolved but not
always.

This is because tRunJob is not designed to work in a Service/Route
style (ESB) deployment, so regular support is not provided if you decide to use it,
even though it may work in many cases. If you used tRunJob in the
past, it is recommended to change your Job Design to use Joblets instead.

For DI and non-ESB use cases, it is still a valuable component and has support.

Schema and Edit Schema	A schema is a row description. It defines the number of fields (columns) to be processed and passed on to the next component. The schema is either Built-In or stored remotely in the Repository. Click Edit schema to make changes to the schema. If the current schema is of the Repository type, three options are available: View schema: choose this option to view the schema only. Change to built-in property: choose this option to change the schema to Built-in for local changes. Update repository connection: choose this option to change the schema stored in the repository and decide whether to propagate the changes to all the Jobs upon completion. If you just want to propagate the changes to the current Job, you can select No upon completion and choose this schema metadata again in the [Repository Content] window. This component offers the advantage of the dynamic schema feature. This allows you to retrieve unknown columns from source files or to copy batches of columns from a source without mapping each column individually. For further information about dynamic schemas, see Talend Studio User Guide. This dynamic schema feature is designed for the purpose of retrieving unknown columns of a table and is recommended to be used for this purpose only; it is not recommended for the use of creating tables.
	Built-In: You create and store the schema locally for this component only. Related topic: see Talend Studio User Guide.
	Repository: You have already created the schema and stored it in the Repository. You can reuse it in various projects and Job designs. Related topic: see Talend Studio User Guide.
Copy Child Job Schema	Click to fetch the child Job schema.
Use dynamic job	Select this check box to allow multiple Jobs to be called and processed. When this option is enabled, only the latest version of the Jobs can be called and processed. An independent process will be used to run the subjob. The Context and the Use an independent process to run subjob options disappear. Warning: The Use dynamic job option is not compatible with the Jobserver cache. Therefore, the execution may fail if you run a Job that contains tRunjob with this check box selected in Talend Administration Center. Warning: This option is incompatible with the Use or register a shared DB Connection option of database connection components. When tRunJob works together with a database connection component, enabling both options will cause your Job to fail. Warning: This option is not supported within ESB Routes or Data Services.
Context job	This field is visible only when the Use dynamic job option is selected. Enter the name of the Job that you want to call from the list of Jobs selected.
Job	Select the Job to be called in and processed. Make sure you already executed once the Job called, beforehand, in order to ensure a smooth run through tRunJob.
Version	Select the child Job version that you want to use.
Context	If you defined contexts and variables for the Job to be run by the tRunJob, select the applicable context entry on the list.
Use an independent process to run subjob	Select this check box to use an independent process to run the subjob. This helps in solving issues related to memory limits. Warning: This option is not compatible with the Jobserver cache. Therefore, the execution may fail if you run a Job that contains tRunjob with this check box selected in Talend Administration Center. Warning: This option is incompatible with the Use or register a shared DB Connection option of database connection components. When tRunJob works together with a database connection component, enabling both options will cause your Job to fail.
Die on child error	Clear this check box to execute the parent Job even though there is an error when executing the child Job.
Transmit whole context	Select this check box to get all the context variables from the parent Job. Deselect it to get all the context variables from the child Job. If this check box is selected when the parent and child Jobs have the same context variables defined: variable values for the parent Job will be used during the child Job execution if no relevant values are defined in the Context Param table. otherwise, values defined in the Context Param table will be used during the child Job execution.
Context Param	You can change the value of selected context parameters. Click the [+] button to add the parameters defined in the Context tab of the child Job. For more information on context parameters, see Talend Studio User Guide. The values defined here will be used during the child Job execution even if Transmit whole context is selected.

Advanced settings

Propagate the child result to the output schema	Select this check box to propagate the output data stored in the buffer memory via the tBufferOutput component in the child Job to the output component in the parent Job. This check box is cleared by default. It is invisible when the Use dynamic job or Use an independent process to run subjob check box is selected.
Print Parameters	Select this check box to display the internal and external parameters in the Console.
tStatCatcher Statistics	Select this check box to gather the processing metadata at the Job level as well as at each component level.

Propagate the child result to the output
schema

Select this check box to propagate the output data stored in the
buffer memory via the tBufferOutput
component in the child Job to the output component in the parent
Job.

This check box is cleared by default. It is invisible when the
Use dynamic job or Use an independent process to run subjob
check box is selected.

Print Parameters

Select this check box to display the internal and external
parameters in the Console.

tStatCatcher Statistics

Select this check box to gather the processing metadata at the Job
level as well as at each component level.

Global Variables

Global Variables	ERROR_MESSAGE: the error message generated by the component when an error occurs. This is an After variable and it returns a string. This variable functions only if the Die on error check box is cleared, if the component has this check box. CHILD_RETURN_CODE: the return code of a child Job. This is an After variable and it returns an integer. CHILD_EXCEPTION_STACKTRACE: the exception stack trace from a child Job. This is an After variable and it returns a string. A Flow variable functions during the execution of a component while an After variable functions after the execution of the component. To fill up a field or expression with a variable, press Ctrl + Space to access the variable list and choose the variable to use from it. For further information about variables, see Talend Studio User Guide.

ERROR_MESSAGE: the error message generated by the
component when an error occurs. This is an After variable and it returns a string. This
variable functions only if the Die on error check box is
cleared, if the component has this check box.

CHILD_RETURN_CODE: the return code of a child Job. This
is an After variable and it returns an integer.

CHILD_EXCEPTION_STACKTRACE: the exception stack trace
from a child Job. This is an After variable and it returns a string.

A Flow variable functions during the execution of a component while an After variable
functions after the execution of the component.

To fill up a field or expression with a variable, press Ctrl +
Space to access the variable list and choose the variable to use from it.

For further information about variables, see
Talend Studio

User Guide.

Usage

Usage rule	This component can be used as a standalone Job or can help clarifying complex Job by avoiding having too many sub-jobs all together in one Job. If you want to create a reusable group of components to be inserted in several Jobs or several times in the same Job, you can use a Joblet. Unlike the tRunJob, the Joblet uses the context variables of the Job in which it is inserted. For more information on Joblets, see Talend Studio User Guide. This component also allows you to call a Job of a different framework, such as a Spark Batch Job or a Spark Streaming Job.
Connections	Outgoing links (from this component to another): Row: Main. Trigger: On Subjob Ok; On Subjob Error; Run if; On Component Ok; On Component Error Incoming links (from one component to this one): Row: Main; Reject; Iterate. Trigger: On Subjob Ok; On Subjob Error; Run if; On Component Ok; On Component Error; Synchronize; Parallelize. For further information regarding connections, see Talend Studio User Guide.

Usage rule

This component can be used as a standalone Job or can help clarifying
complex Job by avoiding having too many sub-jobs all together in one
Job.

If you want to create a reusable
group of components to be inserted in several Jobs or several times in
the same Job, you can use a Joblet. Unlike the tRunJob, the Joblet uses the context
variables of the Job in which it is inserted. For more information on
Joblets, see
Talend Studio User Guide.

This component also allows you to
call a Job of a different framework, such as a Spark Batch Job or a
Spark Streaming Job.

Connections

Outgoing links (from this component to another):

Row: Main.

Trigger: On Subjob Ok; On Subjob
Error; Run if; On Component Ok; On Component Error

Incoming links (from one component to this one):

Row: Main; Reject; Iterate.

Trigger: On Subjob Ok; On Subjob
Error; Run if; On Component Ok; On Component Error; Synchronize;
Parallelize.

For further information regarding connections, see

Talend Studio User
Guide.

Calling a Job and passing the parameter needed to the called Job

This scenario describes a two-component Job named
ParentJob that calls another Job named
ChildJob to display the content of files specified in the
ParentJob on the Run
console.

Setting up the child Job

Create a new Job ChildJob and add a
tFileInputDelimited component and a
tLogRow component to it.
Connect the tFileInputDelimited component to
the tLogRow component using a Row > Main link.
Double-click the tFileInputDelimited component to open its Basic settings view.
Click in the File Name field
and then press F5 to open the New Context Parameter dialog box and configure the
context variable.
In the Name field, enter a
name for this new context variable, FilePath in this
example.
In the Default value field,
enter the full path to the default input file.
Click Finish to validate the
context parameter setup and fill the File Name
field with the context variable.

You can also create or edit a context parameter in the Context tab view beneath the design workspace. For more
information, see
Talend Studio User Guide.
Click the […] button next
to Edit schema to open the Schema dialog box where you can configure the schema
manually.
In the dialog box, click the [+] button to add columns and name them according to the input file
structure.

In this example, this component will actually read files defined in the parent
Job, and these files contain up to five columns. Therefore, add five string type
columns and name them Column1,
Column2, Column3,
Column4, and Column5
respectively, and then click OK to validate
the schema configuration and close the Schema
dialog box.
Double-click the tLogRow
component and on its Basic settings view,
select the Table option to view displayed content in table
cells.

Setting up the parent Job

Create a new Job ParentJob and add a
tFileList component and a tRunJob component to it.
Connect the tFileList component to the
tRunJob component using a Row > Iterate link.

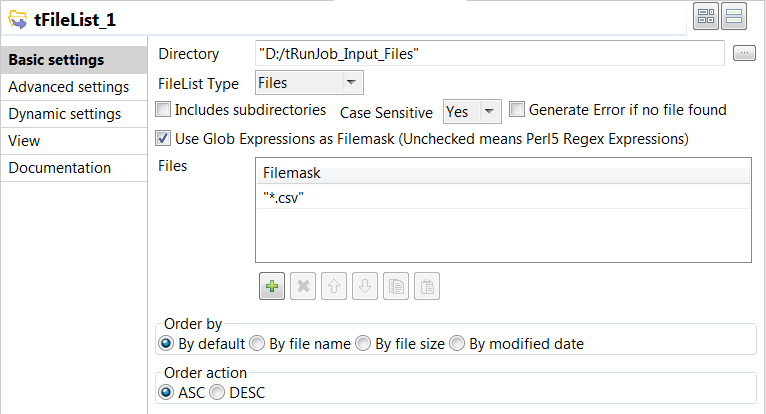

Double-click the tFileList
component to open its Basic settings
view.
In the Directory field,
specify the path to the directory that holds the files to be processed, or click the
[…] button next to the field to browse to
the directory.

In this example, the directory is D:/tRunJob_Input_Files
that holds three delimited files with up to five columns.
In the FileList Type list,
select Files.
Select the Use Glob Expressions as
Filemask check box, and then click the [+] button to add a line in the Files area and define a filter to match files. In this example, enter
"*.csv" to retrieve all delimited files.
Double-click the tRunJob
component to display its Basic settings
view.

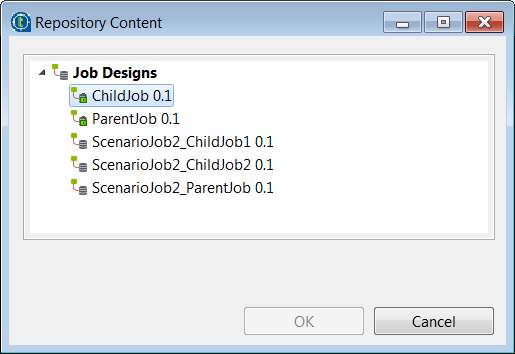

Click the […] button next
to the Job field and in the pop-up dialog box,
select the child Job you want to execute and click OK to close
the dialog box. The name of the selected Job appears in the
Job field.

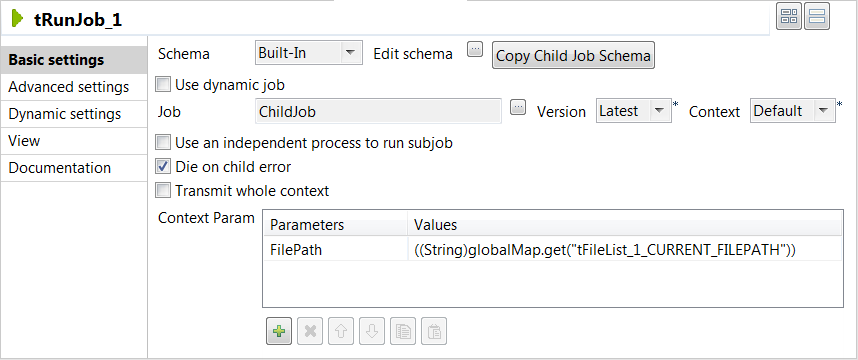

In the Context Param area,
click the [+] button to add a line and define the context
parameter. The only context parameter defined in the child Job, named
FilePath, appears in the Parameters cell.
Click in the Values cell,
press Ctrl+Space on your keyboard to access
the list of context variables, and select
tFileList_1.CURRENT_FILEPATH.

The corresponding context variable
((String)globalMap.get("tFileList_1_CURRENT_FILEPATH"))
appears in the Values cell.

For more information on context variables, see
Talend Studio User Guide.

Executing the parent Job

Press Ctrl+S to save your
Jobs.
Press F6 to execute the
parent Job.

The parent Job calls the child Job, which reads the files defined in the parent
Job, and the content of the files is displayed on the Run console.

Running a list of child Jobs dynamically

This scenario describes a Job that calls two child Jobs dynamically. When called from
the parent Job, each of these simple child Jobs displays a message on the
console.

Setting up the child Jobs

Create a new Job named ChildJob1, and add
a tFixedFlowInput component and a
tLogRow component to it.
Connect the tFixedFlowInput component to the tLogRow component using a Row > Main connection.
Double-click the tFixedFlowInput component to open its Basic settings view.
Click the […] button
next to Edit schema and in the pop-up
dialog box, define the schema of the input data by adding one column
Message of String type. When done, click
OK to close the dialog box and click
Yes when prompted to propagate the schema to the next
component.
In the Mode area, select Use Inline Content(delimited file) and enter the
message you want to show on the console in the Content field, Hello World! in this
example.
Double-click the tLogRow
component and on its Basic settings view, select the
Table mode to display the execution
result in table cells.
Create copy of this Job and name it
ChildJob2, and enter another message in the
Content field of the tFixedFlowInput component, Hello Talend! in this example.

Setting up the parent Job

Create a new Job named ParentJob and add a
tFixedFlowInput component, a
tFlowToIterate component, and a
tRunJob component to it.
Connect the tFixedFlowInput component to the
tFlowToIterate component using a Row > Main connection and the tFlowToIterate
component to the tRunJob component using a Row > Iterate connection.

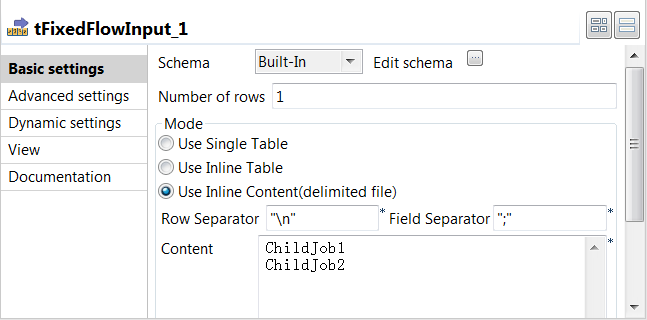

Double-click the tFixedFlowInput component to open its
Basic settings view.
Click the […] button next to Edit
schema and in the pop-up dialog box, define the schema of the
input data by adding one column JobName of String type.
When done, click OK to close the dialog box.
In the Mode area, select the Use Inline
Content(delimited file) option and specify the names of the
child Jobs to call from the parent Job in the Content
field.

ChildJob1 ChildJob2

1
2

ChildJob1
ChildJob2

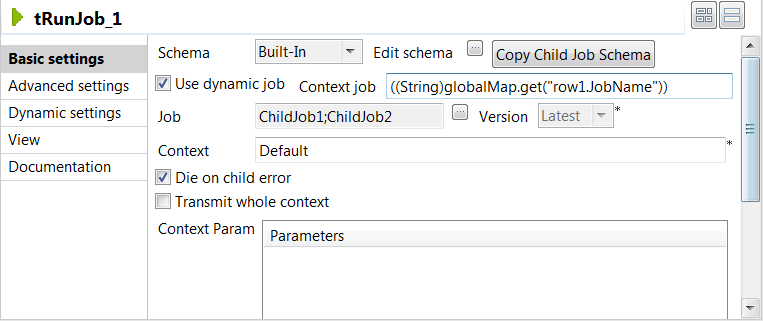

Double-click the tRunJob component to open its
Basic settings view.
Select the Use dynamic job check box and in the
Conext job field displayed, press
Ctrl+Space and from the list of variables select the
iterative global variable created by the tFlowToIterate
component, tFlowToIterate_1.JobName in this example. The
Context job field is then filled with
((String)globalMap.get("row1.JobName")). Upon each
iteration, this variable will be resolved as the name of the Job to be
called.

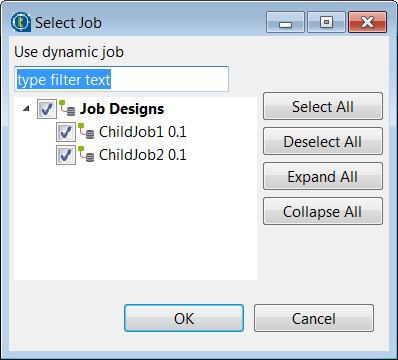

Click the […] button next to the
Job field and in the [Select
Job] dialog box, select all the Jobs you want to run and click
OK to close the dialog box. In this example, they are
ChildJob1 and ChildJob2.

Executing the parent Job to run the child Jobs dynamically

Save your child Jobs and parent Job.
Press F6 or click the Run button
on the Run console to execute the Job.

As shown above, the child Jobs are called one after another and messages
specified in the child Jobs are displayed on the console.

Propagating the buffered output data from the child Job to the parent
Job

In this scenario, a three-component Job calls a two-component child Job and displays
the buffered output data of the child Job, instead of the data from the input flow of
the parent Job, on the console.

Setting up the child Job

Create a Job named child, and add two
components by typing their names on the design workspace or dropping them
from the Palette to the design
workspace:
- a tFixedFlowInput, to generate a
  message
- a tBufferOutput, to store the
  generated message in the buffer memory
Connect the tFixedFlowInput component to
the tBufferOutput component using a
Row > Main connection.
Double-click the tFixedFlowInput
component to open its Basic settings
view.
Click the […] button next to Edit schema to open the [Schema] dialog box and define the schema of the input data.
In this example, the schema has only one column message of the string type.

When done, click OK to validate the
changes and then click Yes in the pop-up
[Propagate] dialog box to propagate the
schema to the next component.

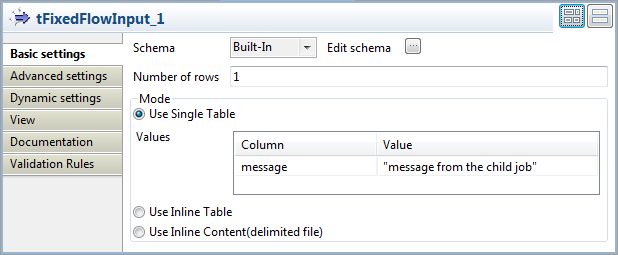

In the Mode area, select Use Single Table option, and define the
corresponding value for the message
column in the Values table. In this
example, the value is “message from the child
job”.

Setting up the parent Job

Create a Job, and add three components by typing their names on the design
workspace or dropping them from the Palette
to the design workspace:
- a tFixedFlowInput, to generate a
  message
- a tRunJob, to call the Job named
  child
- a tLogRow, to display the
  execution result on the console
Connect the tFixedFlowInput component to
the tRunJob component and the tRunJob component to the tLogRow component using the Row > Main
connections.
Double-click the tFixedFlowInput
component to open its Basic settings
view.
Click the […] button next to Edit schema to open the [Schema] dialog box and define the schema of the input data.
In this example, the schema has only one column message of the string type.

When done, click OK to validate the
changes.
In the Mode area, select the Use Single Table option, and define the
corresponding value for the message
column in the Values table. In this
example, the value is “message from the parent
job”.
Click the tRunJob component and then
click the Component tab to open its
Basic settings view.
Click the Sync columns button and then
click Yes in the pop-up [Propagate] dialog box to retrieve the schema
from the preceding component.
Click the […] button next to the
Job field to open the [Repository Content] dialog box.

In the [Repository Content] dialog box,
select the Job named child and then click
OK to close the dialog box.
In the Advanced settings view of the
tRunJob component, select the Propagate the child result to the output schema
check box. With this check box selected, the buffered output of the child
Job will be propagated to the output component.

Executing the parent Job

Press Ctrl+S to save the Job.
Press F6 or click the Run button on the Run console to execute the Job.

The child Job is called and the message specified in the child Job, rather
than the message defined in the parent Job, is displayed on the
console.
